Product Details:
|
| Product Name: | 2d 3d Stone Tombstone CNC Carving Engrave Machine Price | Spindle: | 6kw Water Cooling Spindle |
|---|---|---|---|
| Control System: | DSP A11 Control System | Working Area: | 1200*1200mm |
| Transmission: | XY Rack, Z Ball Screw | Guide Rail: | Linear Square Guide Rail |
| Working Voltage: | AC380V/50HZ | Driver: | Leadshine Stepper Motor Driver |
| High Light: | CNC Stone Carving Machine Tombstone,CNC Stone Carving Machine DSP,3D Stone Carving Machine A11 |
||

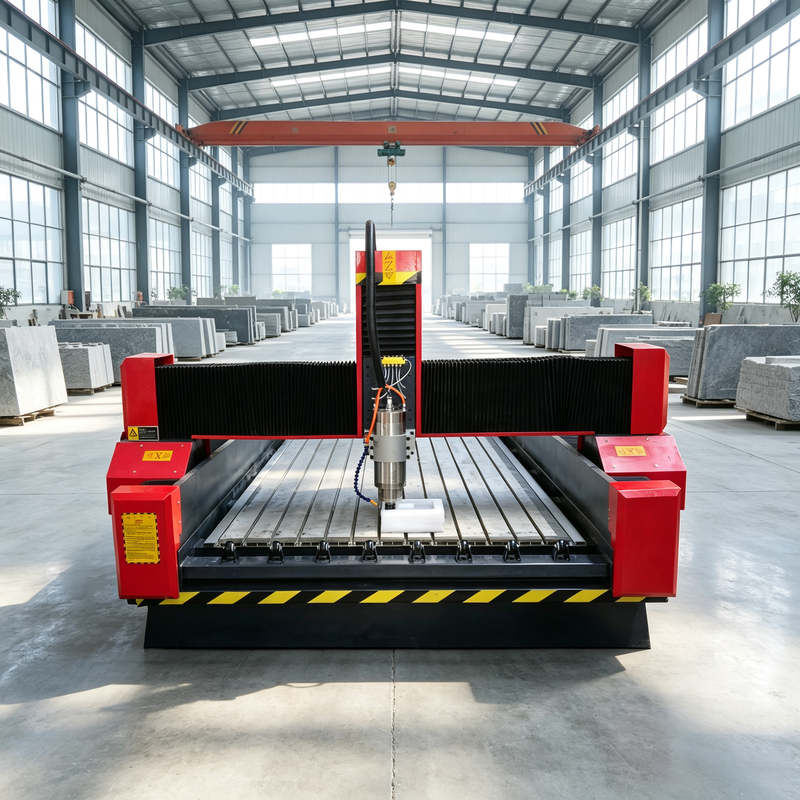

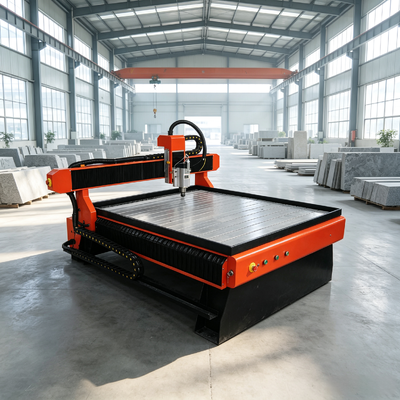

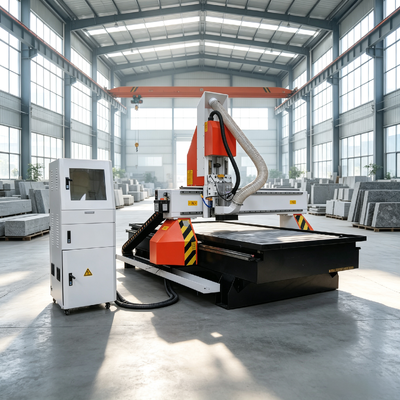

2d 3d Stone Tombstone CNC Carving Engrave Machine Price
Applications:
1. Woodworking industry Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box
5. Others Relief sculpture and 3D engraving and Cylindrical object.
Machine Parameter
| Control system | Ncstudio controller |
| Spindle | 6kw water Cooling spindle 24000rpm |
| Table | T Slot |
| Motor | 450B step motor (Chuangwei) |
| Driving system | 860H driver |
| X, Y Axis structure | 1.5M helical rack |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Chinese 20mm linear rails |
| Inverter | Best Brand 3.7kw |
| Machine working size | X Axis-1200mm ,Y Axis-1200mm ,Z Axis-300mm |
| Machine Size | Length 1750mm ,Wide 1880mm ,High 1680mm |
| Machine Max.travel speed | 22m/min |
| Machine Max.working speed | 20m/min |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 1155kg |
Machine advantage
|
Controller from Ncstudio |
|
Design made by steel 8mm&6mm. |
|
20mm Guide way from Hiwin |
|
Tools sensor for original point setting. |
|
Inverter Brand Changsha BEST, driver brand Leadshine 860H. |
|
Rotary can add additional if necessary. |
|
CCD camera and oscillating cutting head can be added optional. |
|
Some accessory send with machine free. |
