Product Details:
|
| Product Name: | Cnc High Quality Atc Machine With Tool Changer For Cutting Wood | Spindle: | 9Kw Air Cooling Spindle |
|---|---|---|---|
| Control System: | LNC (SYNTEC) | Working Area: | 1300*2500mm |
| Transmission: | Taiwan TBI Ball Screw | Guide Rail: | Linear Square Guide Rail |
| Working Voltage: | 3PH AC380V/50HZ | Driver: | Leadshine 1500W Servo Motor Driver |
| High Light: | Furniture ATC CNC Router Machine,ATC CNC Router Machine 3PH,3PH CNC Cutting Machine Wood |
||

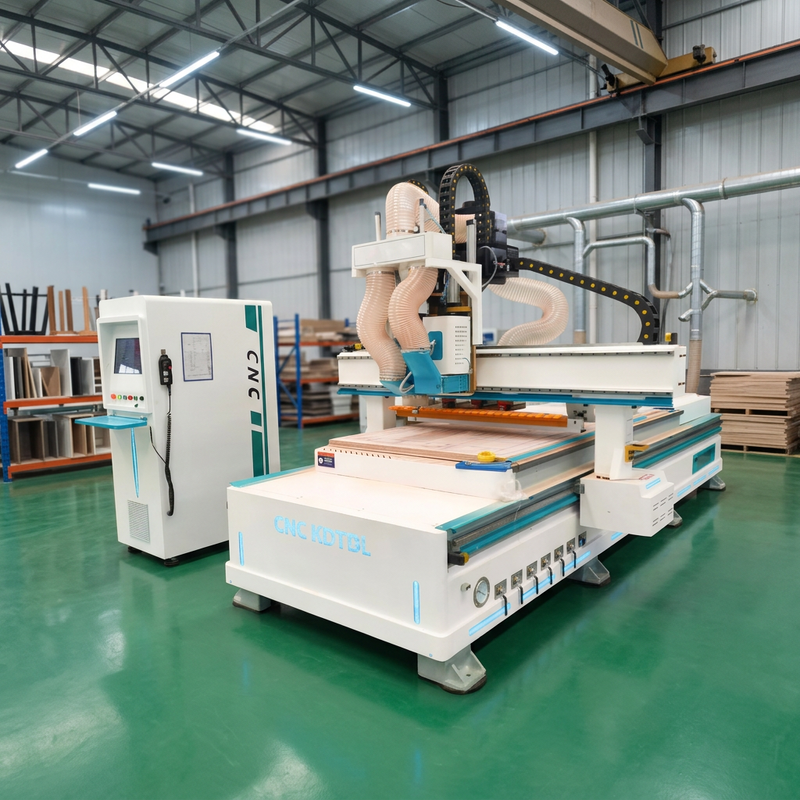

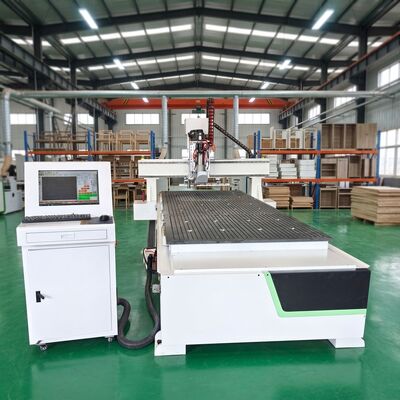

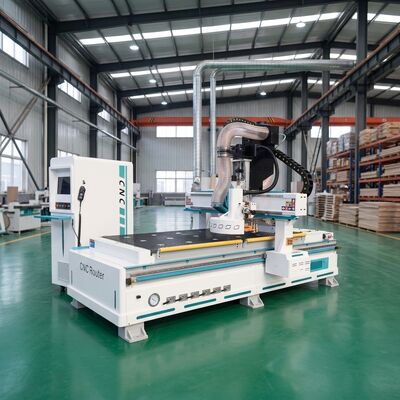

Cnc High Quality Atc Machine With Tool Changer For Cutting Wood
Applications:
1. Woodworking industry Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box
5. Others Relief sculpture and 3D engraving and Cylindrical object.
Machine Parameter
| Control system | LNC |
| Spindle | 9Kw AIr Cooling spindle 24000rpm |
| Table | T Slot |
| Motor | Leadshine servo motor |
| Driving system | Leadshine servo driver |
| X, Y Axis structure | 1.5M helical rack |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Chinese 30mm linear rails |
| Inverter | Best Brand 9kw |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm |
| Machine Size | Length 3150mm ,Wide 1880mm ,High 1780mm |
| Machine Max.travel speed | 22m/min |
| Machine Max.working speed | 18m/min |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 1855kg |
Machine advantage
|
Controller from LNC |
|
9Kw air cooling spindle with auto tools changer |
|
20mm Guide way from Hiwin |
|
Tools sensor for original point setting. |
|
Delta or Leadshine servo motor |
|
Rotary can add additional if necessary. |
|
CCD camera and oscillating cutting head can be added optional. |
|
Some accessory send with machine free. |
