Product Details:
|
| Laser Power: | 1000W&2000W | Laser Head: | Raytools |
|---|---|---|---|
| Laser Source: | Max 1000&2000W | Control System: | Au3tech |
| Working Table: | 1500x3000mm | Max Cutting Speed: | 30m/min |
| Max Cutting Thickness: | 6mm | Power: | 380V 3 Phase 50~60Hz |
| Highlight: | 1Kw Fiber Laser Cutting Machine,Fiber Laser Cutting Machine 2Kw,CNC Stainless Steel Laser Cutting Machine |
||

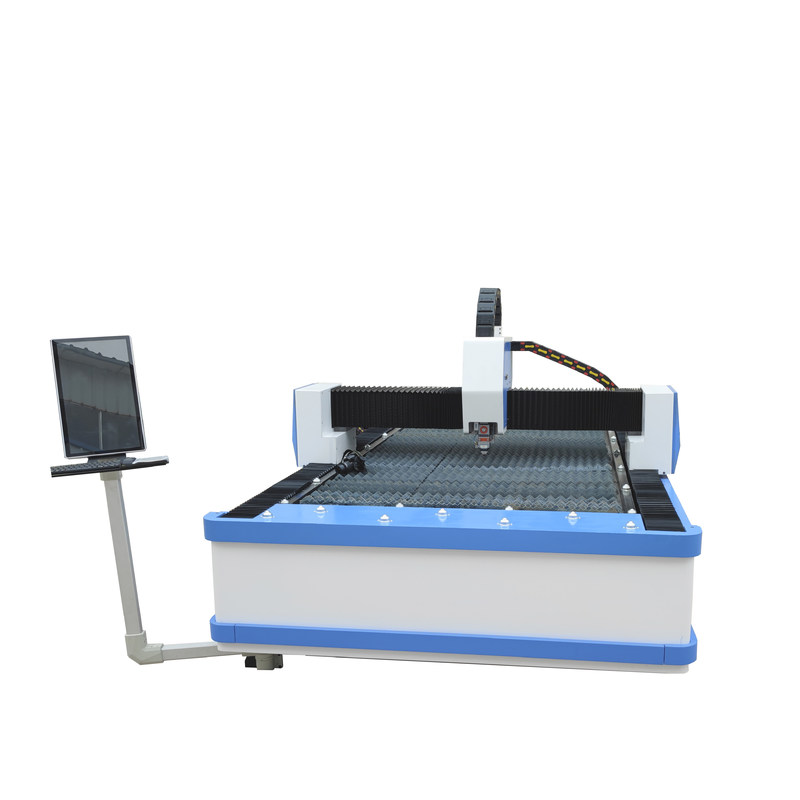

1Kw 2Kw Good Price 1530 Size CNC Fiber Laser Cutting Machine For Stainless Steel Cutting
Machine table Features:
| Item | Data |
| Model | GS-1530F |
| laser power | 1000W Max made in China |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 40m/min |
| Cutting Thickness | Stainless Steel≤3mm , Carbon Steel≤6mm |
| Control System | Au3tech |
| Auxiliary Gas | Au3tech |
| Max. torque | 500N.m |
| Driver system | 750W Leadshine servo motor |
| Liner guider system | HIWIN made in Taiwan |
| Rack system | YYC Taiwan |
| Warranty time | 2 years |
| Delivery time | 25 days |
| Power supply | AC380V/50HZ, |
Manufacturing Technique
|
Fiber laser power from MAX 1000W 2000W 3000W |
|
|
Cutting torch from WSX or Raytools |
|
Controller from Raycus or Au3tech |
|
Imported ball screw or helical rack, works with Chinese leashine servo motor |
