|Product Name:||100w 130w 1390 Co2 Wood Acrylic Laser Engraving And Cutting Machine||Laser Power:||60W/80W/100W/130W/150W|
|Control System:||Rdcam||Working Area:||1300x900mm|
|Support Material:||MDF Acrylic Glass Wood Plastic||Motor:||Leadshine Stepper|
Wood Co2 Laser Cutting Machine,
Acrylic Co2 Laser Cutting Machine,
Engraving Laser Cutting Machine 1390

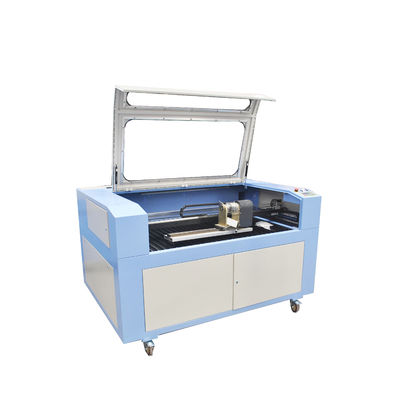

With Rotary 4 Axis 1390 Co2 Wood Acrylic Laser Engraving And Cutting Machine
It is used to engrave on wood,bamboo, plexiglass,crystal, leather,rubber, marble,ceramics and glass and etc.It is most suitable and the preferred choice of equipments in industries such as advertisement,gifts,shoes,toys and etc.It supports multiple graphic formats,such as PLT,DXW,BMP,GIF,JPG,JPEG,DXF,DST, AI etc. The machine is equipped with CorelLSER Control System,supports CoreDraw and Auto CAD and other advance software.It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine,or can download it to the machine directly with USB cable from the computer. Even on the same Job, you can do setting with different colour in the software and make holes.And it can the legs separate from the main body of the machine.The machine fornt and back doors can be opened to accommodate more extensive materials.
|Engraving Scanning Speed||0-5000mm/min|
|Max Moving Speed||0-30000mm/min|
|Biggest scanning precision||3000DPI|
|Table||Knife panel table with platform-lift table|
1)Perfectly tidy power supply system.The power supply system of the whole machine is strictly in accordance with international standards.Different control power signal lines adopt separate routing design,and all the cables are clean and tidy,avoiding electromagnetic interference between various types of signal lines.
2)The X and Y axis use high-precision guide rails imported from South Korea.Improve laser engraving and cutting accuracy and ensure that the laser machine runs efficiently and stably for a long time.
3) 5mm thick alumina working platform,to ensure the level of the work platform, improve the accuracy of object carving.
4)High precision driver motor.The X / Y axis uses a high-precision belt-driven Leadshine motor to improve response speed and cutting engraving accuracy. More accurate than the unknown brand motors used by other manufacturers, and longer working life.
5)The latest manual rotary lifting system is fast and stable.Engraving different thicknesses material,the height of the working platform can be adjusted freely. With the focal length ruler on the right side of the machine's working platform, the focus can be quickly determined without measuring the distance from the laser head to the material with a manual ruler.
6) Adopt the new high-efficiency CO2 laser tube of CDW, the 60W co2 laser tube can reach a peak of 75W. The laser beam is more stable and the life of the laser tube can exceed 7,000 hours.
7) Red dot positioning Synchronize with the laser, which make the operation more convenient.
8) Optional S&A CW-3000 Water chiller and install water cooling control system.Laser tube working at high temperature can be cooled quickly to ensure that the laser tube has stable power and efficient.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be no laser,can protect the working life of laser tube effectively.
9) Coreldarew or Ruida system can ensure the engraving cutting task completed quickly at one time.
10) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.Ensure higher engraving accuracy than similar models on the market.
