Product Details:
|
| Product Name: | 1600x2500mm Fabric Oscillating Cutting Machine With CCD | Cutting Head: | Straight Cutting Head |
|---|---|---|---|
| Control System: | Xingduowei | Working Area: | 1600*2500mm |
| Transmission: | Taiwan TBI Ball Screw | Guide Rail: | Linear Square Guide Rail |
| Working Voltage: | AC380V/50HZ | Driver: | Dorna Servo Motor Driver |
| Highlight: | CCD Oscillating Cutting Machine,Fabric Oscillating Cutting Machine,Fabric Cutting Machine AC380V |
||

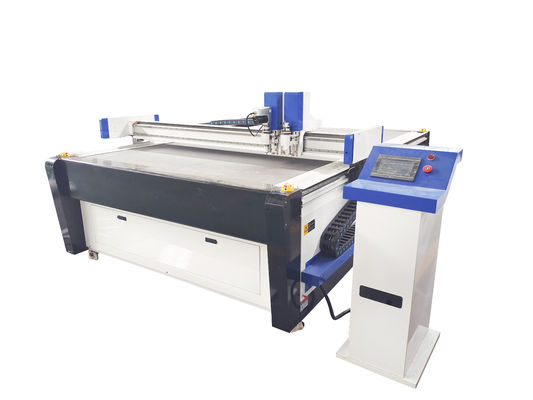

1600x2500mm Fabric Oscillating Cutting Machine with CCD
Application
Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites
Machine Parameter
| Control system | Xingduowei controller |
|
Table |
Flat vacuum table |
|
Safety device |
Infrared adopted; sensitive response; safe and reliable |
|
Running speed |
45m/min max |
|
Cutting speed |
30m/min max |
|
Cutting material |
knitted material, tatting material, fur, PU leather, jean denim, canvas, foam, artificial leather, diablement fort, blend fabrics, Cotton & Linen, etc |
|
Multifunctional head |
V-cut tools, universal cutting tools |
|
Cutting thickness |
0.1-10.0mm (subject to the material cutting) |
|
Transmission interface |
Ethernet |
| Controller | Rdcam |
| Machine working size | X Axis-1600mm ,Y Axis-2500mm ,Z Axis-200mm |
|
Transmission |
XY axis helical rack,Z ball screw |
|
Motor |
750w Dorna servo motor |
|
Guide way |
Linear guide way Hiwin |
|
Table |
Vacuum table |
|
Size |
2100mm*3400mm |
|
Vacuum pump |
7.5Kw |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 1355kg |
