Product Details:
|
| Product Name: | 4*8ft 1325 Cnc Wood Router Carving Machine | Spindle: | 3.2kw Water Cooling Spindle |
|---|---|---|---|
| Control System: | DSP A11 Control System | Working Area: | 1300*2500mm |
| Transmission: | Taiwan TBI Ball Screw | Guide Rail: | Linear Square Guide Rail |
| Working Voltage: | AC220V/50HZ | Driver: | Leadshine Hybrid Servo Motor Driver |
| High Light: | 1325 CNC Router Carving Machine,CNC Router Carving Machine CE,Wood CNC Carving Machine AC220V |
||

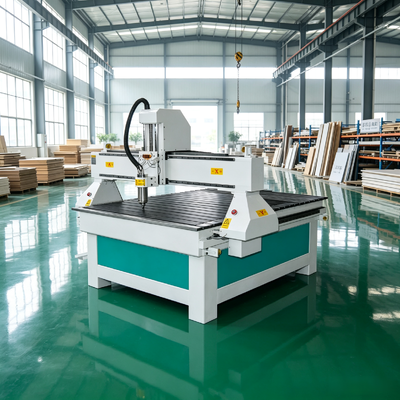

Servo Motor China 4*8ft 1325 Cnc Wood Router Carving Machine
Applications:
1. Woodworking industry Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box
5. Others Relief sculpture and 3D engraving and Cylindrical object.
Machine Parameter
| Control system | DSP A11 controller |
| Spindle | 3.2kw water Cooling spindle 24000rpm |
| Table | T Slot |
| Motor | Leadshine Hybrid servo motor |
| Driving system | Leadshine 2206 easy servo driver |
| X, Y Axis structure | 1.5M helical rack |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Chinese 20mm linear rails |
| Inverter | Best Brand 3.7kw |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm |
| Machine Size | Length 3150mm ,Wide 1880mm ,High 1780mm |
| Machine Max.travel speed | 22m/min |
| Machine Max.working speed | 18m/min |
| Machine Voltage | 1PH ,220V ,50/60HZ |
| Machine weight | 855kg |
Machine advantage
|
Controller from DSP A11. |
|
Design made by steel 8mm&6mm. |
|
20mm Guide way from Hiwin |
|
Tools sensor for original point setting. |
|
Easy servo motor and driver from Leadshine |
|
Rotary can add additional if necessary. |
|
CCD camera and oscillating cutting head can be added optional. |
|
Some accessory send with machine free. |
