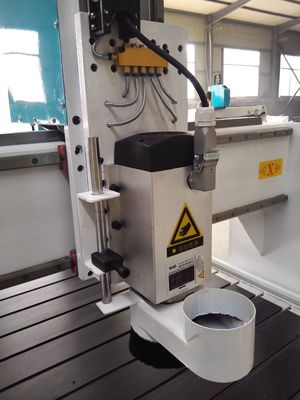

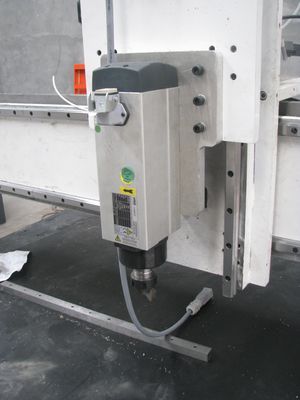

380V 3 Phase HQD ER32 Size 6Kw Wood air Cooling Spindle
Power:6Kw
Speed:19000rpm
Cooling method: air cooling
Frequency:400Hz
Voltage:220V/380
1. Air cooling has a good heat dissipation effect
2. Four bearings, high power, and long service life.
3. The meticulous encapsulation process makes the rotor fuller and more durable. Copper alloy commutator has higher hardness and stronger wear resistance.
4. Pure copper galvanized cooling water pipe joint
HQD Square Air-cooled Spindle Motor Series - Product Details & Selling Points
Product Keywords: HQD square air-cooled spindle, 1.5KW-9KW air-cooled spindle motor, CNC woodworking engraving spindle, GDF series spindle motor, fan cooling spindle, CNC engraving machine accessories, flange square air-cooled spindle
Jinan Leetro Technology Co., Ltd. proudly launches the HQD Square Air-cooled Spindle Motor Series, a high-performance core accessory for CNC engraving machines with a power range of 1.5KW to 9.0KW. This series covers a full lineup of models including GDF46-18Z and GDF60-18Z series, available in both standard square and flange square air-cooled versions, perfectly adapting to the processing demands of woodworking, advertising, stone, laser and special-shaped engraving industries. As a professional CNC spindle solution, our square air-cooled spindle motors feature compact structure, efficient heat dissipation and stable operation, serving as a reliable power core for various CNC engraving and milling equipment.
Core Selling Points
-
Full Model Range & Dual Structural Options
Covering 1.5KW/2.2KW/3.5KW/4.5KW/6.0KW/7.5KW/9.0KW multiple power grades, with two main specifications of GDF46-18Z and GDF60-18Z. Each power model is available in
standard square spindle and
flange square air-cooled spindle versions, matching different installation and processing requirements of CNC machines. Complete model selection realizes one-stop purchasing for customers, no need for multi-supplier matching.
-
Unified High-speed Performance & Precise Processing
All models support a stable rotating speed of
18000 rpm and a working frequency of 300HZ, ensuring high-speed and high-precision engraving, milling and cutting processing. Equipped with graded chucks (ER20/ER25/ER32) based on power, the spindle motor achieves precise clamping of different tools, meeting the processing precision requirements of small and medium-sized workpieces, and effectively improving the surface finish of workpieces.
-
Efficient Fan Cooling & Long-term Stable Operation
Adopting professional
fan cooling technology and grease lubrication system, the spindle motor realizes efficient heat dissipation without additional water cooling pipelines, simplifying equipment installation and daily maintenance. The integrated cooling structure effectively avoids temperature rise caused by long-time continuous operation, ensuring stable performance, low vibration and long service life, suitable for heavy-duty industrial processing scenarios.
-
Dual Voltage Adaptation & Wide Industrial Compatibility
All spindle motors support
220V/380V dual voltage input, perfectly matching the power supply environment of different industrial sites at home and abroad, with no need for additional voltage conversion equipment. The standardized structural design with precise flat positions (21/32) and fixed thread interfaces (M25X15, M32X15, M40X15) ensures firm installation and no slipping during operation, adapting to most mainstream CNC engraving machines on the market.
-
Industrial-grade Configuration & Reliable Quality
Adopting high-quality core components, the spindle motor features stable current output (3.0A-31.5A graded matching) and high concentricity, effectively avoiding tool wear and workpiece processing errors caused by current fluctuation and spindle shaking. The product is strictly calibrated for all parameters, with a sturdy and durable shell structure, able to withstand the harsh working environment of industrial workshops and ensure long-term reliable operation.
-
Professional Technical Support & Efficient After-sales Service
Produced by
Jinan Leetro Technology Co., Ltd. with over 10 years of CNC industry experience, the product has independent R&D patents and cooperates with 85% of domestic CNC machine tool manufacturers. We provide detailed
wiring instructions and usage diagrams for all spindle motors, with a pre-sales and after-sales team of more than 20 professional technicians to solve installation, debugging and wiring problems in a timely manner. Our three large warehousing and logistics centers stock more than 7,000 kinds of CNC accessories, supporting same-day delivery and one-stop purchasing service.
Wide Application
The HQD Square Air-cooled Spindle Motor Series is the ideal core accessory for CNC woodworking engraving machines, advertising engraving machines, stone engraving machines, laser engraving equipment and special-shaped engraving machines. It is widely used in the engraving, milling, cutting and drilling processing of wood, acrylic, plastic, stone and light metal materials, and is suitable for industrial production, processing workshops and CNC equipment matching and upgrading scenarios.
Maintenance
After receiving a new electric spindle, it will start at a low speed of 6000, and increase it by 3000 every ten minutes, until it can be used normally after 24000 revolutions. The bearings inside the new spindle need to be preheated and run-in, so remember! In addition, in order to prolong the service life of the spindle, it is best to start the spindle for a test run for 10-15 minutes during normal use.
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to North America(5.00%), Eastern Europe(4.50%),Africa(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
spindle motor, stepper motor,CNC router drive, frequency inverter,cnc control system
4. why should you buy from us not from other suppliers?
We are a professional CNC router parts wholesaler, experience more than 12 years We not only produce CNC parts but also sell other famous brands CNC parts.
Just tell us your needing, we will help you buy with factory price and quality.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T, MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English, Chinese
